Controller Selection and Functions Menu
The Controller Selection and Functions menu allows to select which controller type is displayed. It also contains editing functions for controller lanes and events.
-

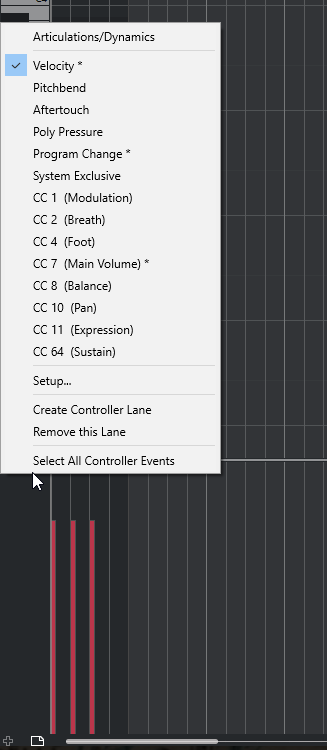

To open the Controller Selection and Functions dialog, click Controller Selection and Functions to the left of the controller display.
The following options are available:
- Event types
-
Lists the event types that you can display on the controller lanes. If automation data already exists for a controller, this is indicated by an asterisk that is displayed next to the controller name.
- Setup
-
Opens the MIDI Controller Setup dialog that allows you to specify which MIDI controllers are visible/hidden in the menu.
- Create Controller Lane
-
Adds a controller lane to the controller display.
- Remove this Lane
-
Removes the current controller lane.
- Select All Controller Events
-
Selects all controller events from the current lane.
