Connecting Channels with VCA Faders

Procedure

  1. Right-click in the fader section of the MixConsole, and select Add VCA Track from the context menu.

    This creates an unassigned VCA fader.

  2. In the VCA rack of the channel that you want to connect to the VCA fader, click the top slot.

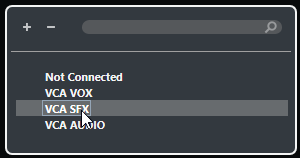

  3. In the VCA selector, select the VCA fader.

Result

The channel is connected to the VCA fader. The VCA rack slot of the channel displays the name and the color of the VCA fader. The VCA rack slot of the VCA fader displays the number of connected channels.
