Using MIDI

As well as supplying transport and sync control, VST System Link also supplies up to 16 MIDI ports, with 16 channels each.

Procedure

  1. Use the MIDI Inputs and MIDI Outputs value fields to specify the number of MIDI ports you need.

    The default value is 0 MIDI In and 0 MIDI Out ports.

  2. In the Project window, create a MIDI track and open the Inspector (top section).

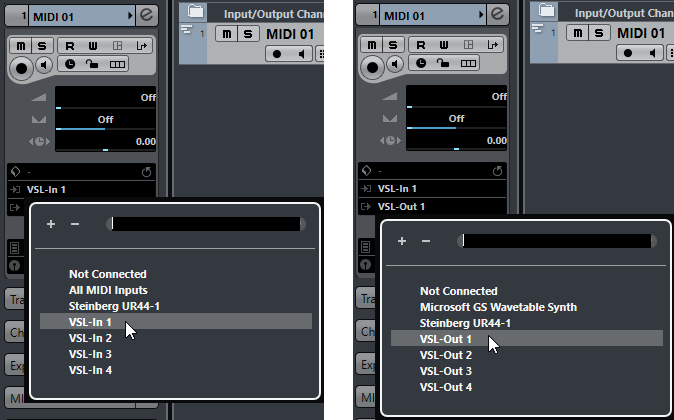

  3. If you now open the Input or Output Routing pop-up menu, you will find the specified System Link ports added to the list of MIDI inputs or outputs.

    This allows you to route MIDI tracks to VST instruments running on another computer.
