Connecting Channels with VCA Faders

Procedure

  1. In the fader section of the MixConsole, create an unassigned VCA fader.
  2. In the VCA rack of the channel that you want to connect to the VCA fader, click the top slot.

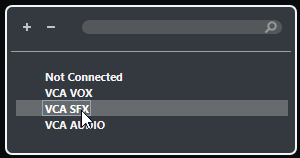

  3. In the VCA selector, select the name of the unassigned VCA fader.

Result

The channel is connected to the VCA fader. The VCA rack slot of the channel displays the name and the color of the VCA fader. The VCA rack slot of the VCA fader displays the number of connected channels.
