Audio Connections Tab

This tab allows you to specify how to connect the internal input and output buses in WaveLab Pro to your sound card and to choose a device for audio playback and recording.

  • To open the Audio Connections tab, select File > Preferences > Audio Connections.

Global Settings

Audio Device

Allows you to select the audio device that you want to use for playback and recording audio. If you do not have a third-party audio card, you can select the Steinberg built-in ASIO driver or Built-in Audio (macOS only) options.

Port Names

Opens the Audio Port Names dialog, where you can specify a custom name for each input and output audio port.

Control Panel

When you select an ASIO driver, the Control Panel button is activated. Click the button to open the settings application of your sound card, which is usually installed with the sound card. Depending on your sound card and driver, this provides settings for buffer size, digital formats, additional I/O connections, etc.

Refresh

This button causes audio devices to be evaluated again to reflect device changes.

Playback Tab

This tab allows you to add buses that are used for playback. If you are monitoring on a surround system, you can specify your surround speaker outputs here.

Add Bus

Adds a new playback bus to the bus list.

Remove Selected Bus

Removes the selected bus from the bus list.

Move Bus Up

Moves the selected bus up in the bus list. This also modifies the bus order in the WaveLab Pro menus.

Move Bus Down

Moves the selected bus down in the bus list. This also modifies the bus order in the WaveLab Pro menus.

Bus List

Displays all buses. You can rename and move buses in the list. To rename a bus, double-click it, and enter a new name.

Bus Category

Allows you to assign a category to the selected bus. Depending on the category, you can select the buses in different areas of WaveLab Pro. The following categories are available:

  • Unused

  • Buses with the category Reference Track appear in the Routing menu of the reference track.

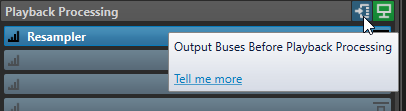

  • Buses with the category Before Playback Processing appear in the Playback Processing pane in the Master Section when you click Output Buses Before Playback Processing.

  • Buses with the category Speaker Configuration appear in the Speaker Configuration pane in the Master Section. This allows you to switch between different speakers. Speaker Configuration #1 is the main playback bus.

Channel Configuration

Allows you to route playback buses to device ports. You can choose Universal, Stereo, Surround, Ambisonics, Multi Mono, or Multi Stereo. In the table below the Channel Configuration menu, you can specify the Device Port for each channel of a playback bus.

Recording Tab

The first time an audio device is detected, WaveLab Pro automatically assigns input buses. You can use this configuration or edit the input buses.

This tab allows you to add buses that are used for recording and input monitoring. The inputs that you define here are then available in the Recording dialog.

Add Bus

Adds a new recording bus to the bus list.

Remove Selected Bus

Removes the selected bus from the bus list.

Move Bus Up

Moves the selected bus up in the bus list. This also modifies the bus order in the WaveLab Pro menus.

Move Bus Down

Moves the selected bus down in the bus list. This also modifies the bus order in the WaveLab Pro menus.

Channel Configuration

Allows you to route recording buses to device ports. You can choose Mono, Stereo, Surround, Ambisonics, Multi Mono, or Multi Stereo. In the table below the Channel Configuration menu, you can specify the Device Port for each channel of a recording bus.

Buses List

Displays all buses. You can rename and move buses in the list. To rename a bus, double-click it, and enter a new name.

External Effects Tab

This tab allows you to add external effects. The external effect buses that you create here are available in the Audio Bus menu in the External FX plug-in.

Add Bus

Adds a new bus to the bus list.

Remove Selected Bus

Removes the selected bus from the bus list.

Move Bus Up

Moves the selected bus up in the bus list. This also modifies the bus order in the WaveLab Pro menus.

Move Bus Down

Moves the selected bus down in the bus list. This also modifies the bus order in the WaveLab Pro menus.

Bus List

Displays all buses. You can rename and move buses in the list. To rename a bus, double-click it, and enter a new name.

Options Tab

This tab allows you to specify the number of buffers and the control driver functionality.

ASIO-Guard

Increasing this value improves the elasticity of audio streaming to avoid dropouts. The higher the level, the higher the processing stability and the audio processing performance. However, higher levels also lead to an increased ASIO-Guard latency and memory usage.

Perform Short Fade In When Starting Playback

If this option is activated, a short fade in is performed when you start playback. This avoids clicks caused by waveforms that do not start at a zero-crossing point.

The fade is linear and either ten milliseconds long or corresponds to the audio device block size if the block size is below ten milliseconds.

Perform Short Fade Out When Stopping Playback

If this option is activated, a short fade out is performed when you stop playback. This avoids clicks caused by waveforms that do not end on a zero-crossing point. This also discards any audio signal that is caused by latency and any tail that is caused by reverb plug-ins.

The fade is linear and either ten milliseconds long or corresponds to the audio device block size if the block size is below ten milliseconds.

Release Driver

Allows you to run WaveLab Pro together with other applications and always gives the active application access to the audio card.

  • If When WaveLab Pro is in Background is activated, the driver is released when WaveLab Pro is in the background.

  • If When Cubase/Nuendo is in Foreground is activated, the driver is released when Cubase/Nuendo is in the foreground.

Preferred Sample Rate

Allows you to specify the Preferred Sample Rate for playback.

Sample Rate Change Timeout

After WaveLab Pro requests the audio device to operate at a new sample rate, the driver sends WaveLab Pro feedback when the task has been completed.

Most drivers do not require you to specify a sample rate change timeout. However, some drivers send delayed feedback or no feedback at all. For these cases, you can specify a timeout.

After the time you specify here, WaveLab Pro assumes the sample rate was accepted and attempts to start playback or recording. However, if WaveLab Pro receives feedback from the driver, the timeout expires.

If you experience sample rate change issues, increase the timeout to three or more seconds. The ideal time is the shortest time that works.

The bottom right of the Master Section displays a progress bar while waiting for the driver feedback.
